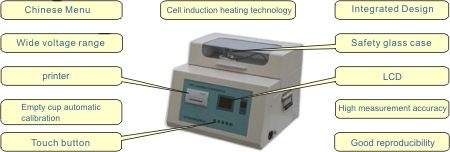

TE6210 Insulating Oil Capacitance and Dissipation Factor Tester
TE6210 Insulating Oil Capacitance and Dissipation Factor Tester adopts high-frequency induction heating technology, uniform heating, fast heating speed, short time. This device use MCU to control and calculate, realizing automation testing; it has high test precision of capacitance and dissipation factor, stable data and good reproducibility characteristics. Output voltage is 0 ~ 2000V, continuously adjustable, for all needs of voltage levels of different test products. Widely used in the test of capacitance and dissipation factor of transformer oil, capacitor oil and cable oil.
Product Feature

  (1) The instrument integrated oil cup, heating, temperature control, voltage regulator.
  (2) With large-screen LCD display, Chinese print, Chinese menu, simple to operate.
  (3) With the functions of over voltage, over current and limit protection.
  (4) High-frequency induction heating oil cup, short uniform heating.
  (5) Directly measures the temperature through the probe of measurement electrodes.
  (6) Empty cup automatic calibration
  (7) Built-in sine wave generator, digital regulator generates standard 50Hz power test current.

Technical Parameters
 Power Supply   AC220V ± 10%       Frequency:50Hz
 Service condition   Ambient temperature:0℃~+40℃   Relative humidity:<75%RH
 Relative permittivity   (1.0~10.0)±1%
 Output voltage   0-2000V
 Measuring temperature range   Room temperature~125℃
 Power   500W
 The measurement range of Capacitance and Dissipation Factor   0.00001~1
 Relative permittivity   (1.0~10.0)±1%
