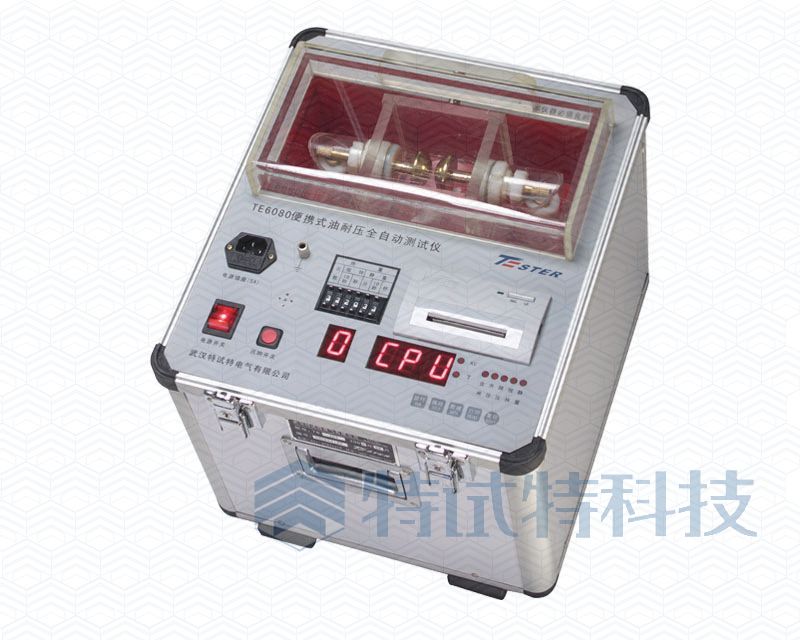

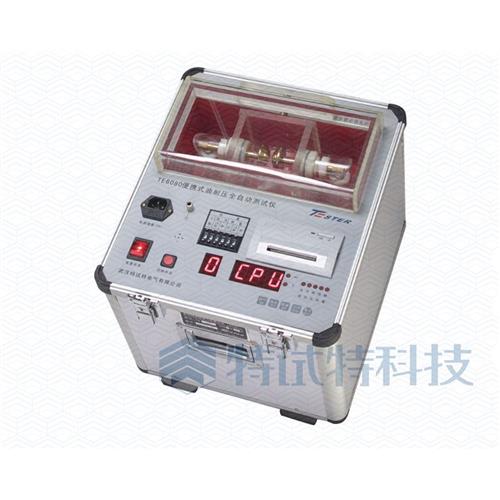

TE6080 Portable Breakdown Analyzer for Oil Testing
TE6080 Automatic insulating Oil Tester, in accordance with IEC156, realizes the full automatic determination of insulating oil dielectric strength, make the original tedious and dangerous work become safe and easy. The instrument adopts special software and hardware anti-interference measures to eliminate the competing products prone to crash phenomenon. The new design will reduce the volume to the 1 / 2 of original, easy to carry and operate on-site.

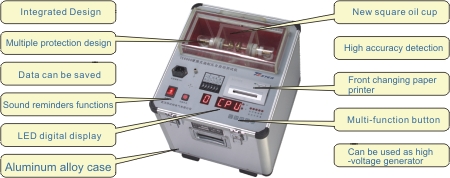

Product Feature

  (1) High degree of automation: auto mixing, autostanding, auto step-up, automatically record the breakdown voltage, automatic cut power and go back to zero, automatically calculate the average, auto-print.
  (2) Multi-layer anti-interference design of hardware and software, effectively eliminating the phenomena of system halted, run error and so on caused by strong electromagnetic interference in the operation.
  (3) Integrated design, easy to carry.
  (4) Breakdown Protection: it can cut off the high voltage of the oil cup within 10ms after the breakdown of the oil sample.
  (5) Multi- protection, operational safety.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 Service condition   Ambient temperature:-10℃~40℃   Relative humidity≤90%RH
 Dimensions  Length310mm*Width330mm*Height324mm
 Weight   22kg
 Measurement Accuracy   ±(2%×readings+1kV)
 Step-up rate   2.5kV/s±10%
 Output voltage   AC 0~80kV
 Preset times   1~9Times
  Stirring time:0~99 s
  Silent pause 0~10 Minutes 39 s.
