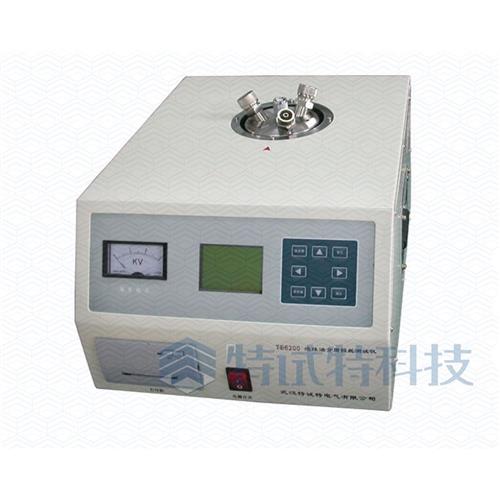

TE6200 Insulating Oil Capacitance and Dissipation Factor Tester

Product Manuals
Related downloads
Technical Data
Picture    Collect
TE6200 Insulating Oil Capacitance and Dissipation Factor Tester
TE6200 Insulating Oil Capacitance and Dissipation Factor Tester is a well-developed high-precision, digital industrial instrument, in accordance with relevant State regulations. The device adopts high-frequency induction heating technology, uniform heating, fast heating speed, short time. This device use MCU to control and calculate, realizing automation testing; it has high test precision of capacitance and dissipation factor, stable data and good reproducibility characteristics. Output voltage is 0 ~ 2000V, continuously adjustable, for all needs of voltage levels of different test products.
Product Feature

  (1) It adopts Electromagnetic Induction Heating technology, uniform heating, fast heating speed, short time.
  (2) Output voltage 300 ~ 2000V, continuously adjustable, for all needs of voltage levels of different test products.
  (3) Accurate temperature control, not affected by the environment temperature.
  (4) High measurement accuracy, data stability, good reproducibility.
  (5) With bad grounding protection circuit, if no grounding or bad grounding, it will prompt in Chinese.
Technical Parameters
 Power Supply   AC220V±10%        Frequency：50Hz
 Service condition   Ambient temperature：0～40℃       Relative humidity:≦90% No condensation
 Temperature control range   Room temperature~100℃
 Weight   10kg
  Output voltage   0－2000V
 Measurement range   Capacitance：1pF~200pF
  Dissipation Factor：0~10%
 Measurement Accuracy   Capacitance：±（0.5%•C+1pF）
  Dissipation Factor：±（1%•D+0.00008）
 Resolution  Capacitance：0.01pF
  Dissipation Factor：1×10-5
 Temperature control range   ±0.5℃
