TE6086 Portable Breakdown Analyzer for Oil Testing
TE6086 Portable Breakdown Analyzer for Oil Testing, realize the full automatic determination of insulting oil dielectric strength, make the original tedious and dangerous work become safe and easy. The instrument adopts special software and hardware anti-interference measures to eliminate the competing products prone to crash phenomenon, it adopts six oil cups design, to make work easier and faster

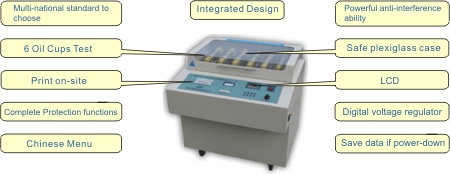

Product Feature

  (1) The apparatus with the six glasses integrated structure (the control box and oil tank as a whole). Microprocessor automatically boost, maintain, stirring, static discharge, computing, printing, etc.
  (2) Adopts LCD display, Chinese menu prompt, simple to operate.
  (3) Continuous record of 10 times of the test values, power-down without losing data.
  (4) This instrument has over-voltage, over current, limit and such protect functions to protect the operator.
  (5) The instrument can select small space oil cup according to the user requirements (program reprovision)
  (6) Containing the sine wave generator, does not directly take the power grid as the testing source, to avoid its impact on the test results.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 Service condition   Ambient temperature:-10℃~40℃   Relative humidity:≤85%
 Dimensions   550×420×490mm
 Weight   39kg
 Power   <200W
 Voltage booster Capacity   1.5kVA
 Standard quantities of oil cups   6 oil cups
 Boost Speed   2.0kV/s 3.0kV/s Optional
 Output voltage   0—80kV
 Distortion rate of Power supply   <1%
 Electrode forms   Flat
 Display forms   Large-screen LCD Chinese display
 Electrode gap   Standard 2.5mm
