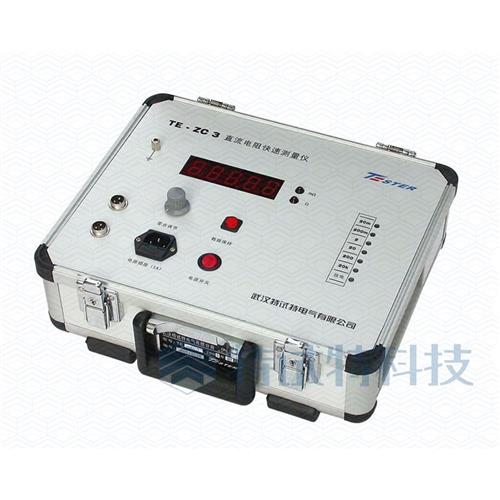

TE2101 Transformer Ohmmeter
TE2101Transformer Ohmmeter also called DC resistance tester is used for rapid measurement of DC resistance of transformer windings, motor winding, the reactor winding, arc-suppression coil, PT and other inductive devices. It can be used to check the welding quality of welding joints, short circuit, damaged, lead errors, the state of the tap switch and other issues.

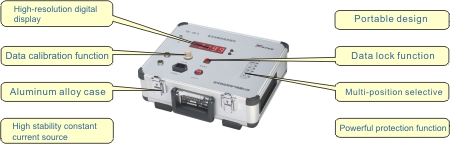

Product Feature

  (1) Fast measurement speed: adopt advanced dual-power constant current source technology, advanced principles, high stability, can build test current quickly, its test speed is hundreds of times of the bridge.
  (2) Discharge quickly: Built-in fast discharge circuit, generally only takes a few seconds to complete the discharge, and can dynamically indicate discharge status, which effectively guarantee the personal and equipment safety.
  (3) Strong anti-interference: even under a serious disturbance in the environment, the last data can be stabilized at a word.
  (4) Safe to use: when test the DC resistance of load voltage regulating transformer, it can switch the tap switch position during the test, and will not cause equipment damage, safe and reliable.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 Service condition   Ambient temperature:-10℃~40℃   Relative humidity≤80%
 Dimensions   Length350mm*width280mm*height160mm
 Weight   4Kg(exclude accessories)
 Instrument Accuracy   The instrument measurement accuracy is(0.2%×reading+2words)
 Security   Insulation Resistance:>2MΩ
  Leakage Current:<3.5mA
  Dielectric Strength:Power connection line on the chassis can withstand 1500V (50Hz RMS) 1 minute.
 Instrument power consumption   Rating power consumption of this instrument is 80w
 Measuring range and resolution    Measuring range:20mΩ   resolution: 1μΩ
  Measuring range:200mΩ  resolution: 10μΩ
  Measuring range:2Ω     resolution: 0.1mΩ
  Measuring range:20Ω    resolution: 1mΩ
  Measuring range:200Ω   resolution: 10mΩ
  Measuring range:20K    resolution: 0.1Ω
 Display   The instrument adopts 41/2 LED display
 Test current   According to a test product resistance, automatically adjust to the suitable current
