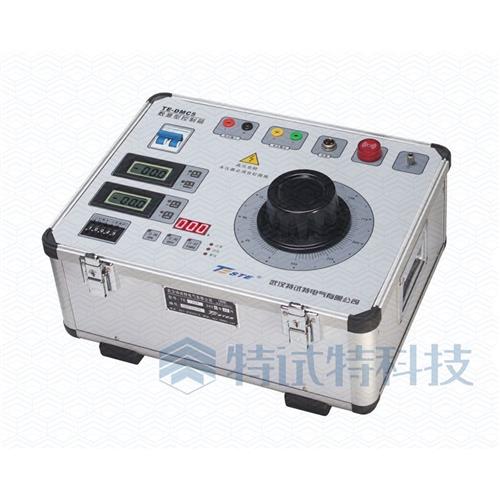

TE-DMC Digital Control Box
TE-DMC Digital Control Box adopts CNC technology, with the features of strong anti-jamming ability, variable power supply 0~250V, small size ,light weight , operation simple, compact structure and convenient maintenance, is the ideal high voltage test equipment in the fields of electric power, water conservancy and chemical industries, railway and laboratory.

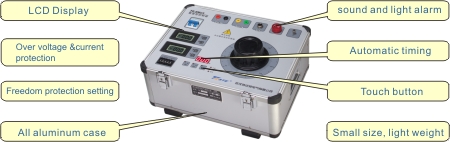

Product Feature

  (1) With all the features of common control box: zero start, over-current protection, over-voltage protection, sound and light alarm.
  (2) Built-in AC RMS measurement circuit, with high-precision LCD header, high precision, more intuitive display.
  (3) Compared to ordinary electromagnetic over-current relays, protection reliable, more convenient to set.
  (4) Automatic timing: automatic timing when reaches the test voltage setting value.
  (5) High and low side voltage and current directly through the touch button to switch display.
  (6) Small size, light weight, 20kVA two persons can move, 10kVA one person can move.

Technical Parameters
 Power Supply   AC220V/380V, 50Hz
 Measurement Accuracy   Current: (2%×reading+1A)
  Voltage: (2%×reading+1kV)
 Protection Accuracy   Current: (5%×reading+1A)
  Voltage: (5%×reading+1kV)
 service condition   Temperature -10℃~40℃
  Humidity < 90%RH
 Output voltage   0~250V Adjustable
  0~450V Adjustable
 Set parameters   not exceed measuring range
 Rated Capacity   TE-DMCX Digital Transformer Controller “X” is Output Capacity
 Output Capacity   3kvA~300kvA
