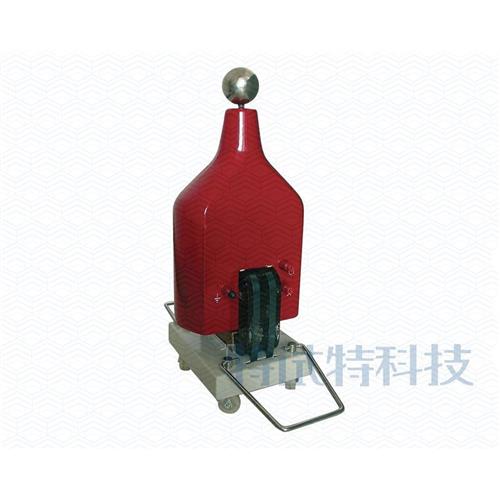

TE-SAT Dry-type Test Transformers
The series of test transformer is small, light weight, compact structure, complete protection, versatility and so on. Applicable to a variety of high-voltage electrical equipment, electrical components, insulation materials of electrical system’s insulation strength test under power frequency or DC high voltage, which is a necessary and important equipment for high voltage test.
Product Feature

Technical Parameters
Specification Capacity
(kVA)		 Input Voltage
(V)		 Output Voltage
(kV)		 Output Current
(mA)		 Output DC high Voltage
(kV)		 Maximum Dimensions
(mm)		 Weight
(kg)
SAT-
1.5/50		 1.5 200 50 30 70 250×200×370 20
SAT-
3/50		 3 60 270×220×370 27
SAT-
6/50		 6 120 300×270×490 48
SAT-
10/50		 10 200 380×290×500 68
SAT-
15/50		 15 300 380×290×800 78
SAT-
20/50		 20 400 380×290×800 82
SAT-
2/100		 2 100 20 140 300×270×560 52
SAT-
5/100		 5 50 380×290×800 76
SAT-
10/100		 10 100 380×290×1000 80
SAT-
15/100		 15 150 380×290×1000 90
