TE3030 High Voltage Circuit Breaker Characteristics Tester

Product Manuals
Related downloads
Technical Data
Picture    Collect

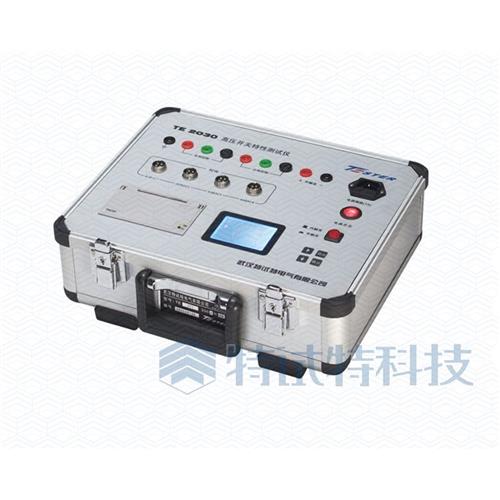

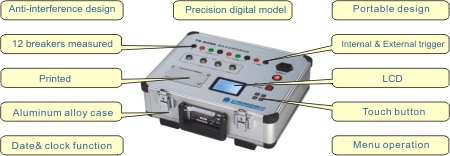

TE3030 High Voltage Circuit Breaker Characteristics Tester
TE3030 High Voltage Circuit Breaker Characteristics Tester, a popular high voltage test equipment in China, it is widely used to test live tank oil, bulk-oil, vacuum, SF6 and other models, with different voltage level of high voltage circuit breaker, can also be used for opening and closing & contemporaneous performance of the low-voltage electrical appliances such as contactors, relays.
Product Feature

  (1) Simple to operate: Chinese characters LCD display, and menu operation, to print a variety of test data
  (2) Special software and hardware anti-interference design, the test data is very reliable.
  (3) A complete test items, can test opening and closing, bounce times, bounce time, losing (tripping) time and losing (tripping) contemporaneous performance.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 Service condition   Ambient temperature:-10℃~40℃  Relative humidity:≤80%
 Dimensions   Length350mm*Width280mm*Height160mm
 Weight   4Kg(Exclude accessories)
 Measurement Accuracy   The Measurement Accuracy of the instrument is ±(0.2%×reading+1 digit)
 Security   Insulation resistance: under voltage DC500V >20MΩ
  Leakage current:<3.5mA
 Dielectric Strength: Power connection line on the chassis can withstand 1500V (50Hz RMS) 1 minute.
 Test methods  Tripping(closing) test: test time≤3s
  Test channel:12 circuit breakers time ,1 circuit breaker speed
  Resolution:100 Microseconds
