TE3036 High Voltage Circuit Breaker Characteristics Tester

Product Manuals
Related downloads
Technical Data
Picture    Collect

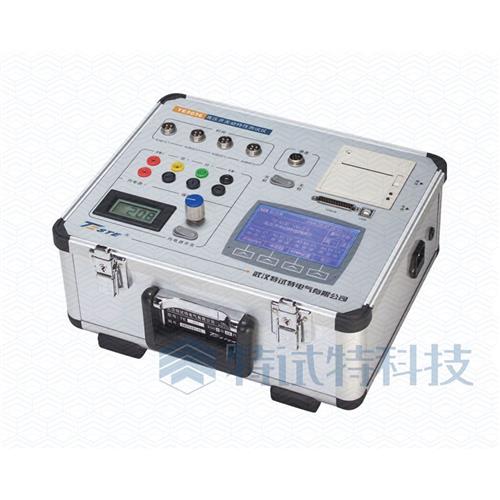

TE3036 High Voltage Circuit Breaker Characteristics Tester
The Circuit breaker analyzer system is widely used to test live tank oil, bulk-oil, vacuum, SF6 and other models, with different voltage level of high voltage circuit breaker, can also be used for opening and closing & contemporaneous performance of the low-voltage electrical appliances such as contactors and relays.

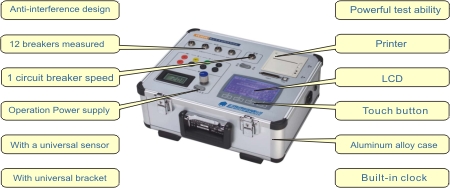

Product Feature

  (1) No need to choose sensors, a universal sensor can meet all models of circuit breaker mechanical properties testing.
  (2) The unique universal bracket with new fixture make it more convenient to acquire the speed signal, there are various models of circuit breakers special bracket, make the measurements more accurate.
  (3) Only one kind of connection with different testing methods, simple to use.
  (4) Powerful printing can print time data, the time fracture surface curve, time - speed curve, time - stroke curve and stroke - speed curve to facilitate the definition of the speed characteristics of circuit breakers at any time or any stroke.

Technical Parameters
 Power Supply  Voltage:AC220V±10%     Frequency:50Hz±1Hz
 Dimensions   Length330mm*Width260mm*Height200mm
 Weight   5kg(Exclude accessories )
 Security   Insulation resistance:>2MΩ
  Leakage Current:<1.000mA
 Dielectric Strength: Power connection line on the shell can withstand 1500V (50Hz RMS) 1 minute.
 Service condition   Ambient temperature:-10℃~40℃
 Measurement Accuracy   Time: ±(1%×reading +0.2ms)
  Speed: ±(1%×reading+0.5m/s)
  Stroke:±(1%×reading+0.2mm)
 Built-in operation power supply   DC30~250V Adjustable,  instantaneous 20A
