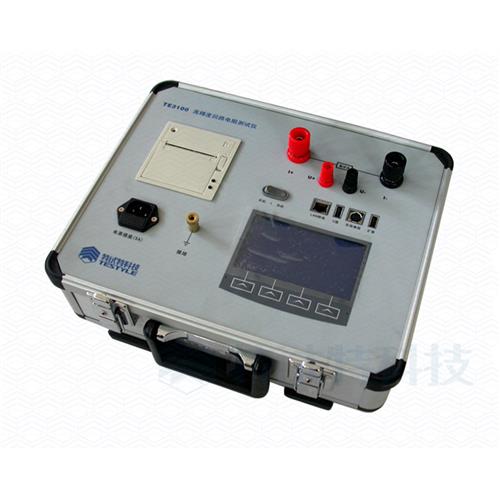

TE3100 High Precision High Current Microhmmeter
TE3100 Series High Precision High Current Microhmmeter, with the features of high current, anti-jamming, high intelligent, portable and easy to operate, it is widely used loop resistance test, with the resolution of 0.01μΩ , can output high current lastingly, and overcome the shortcomings of pulse power supply can not continuous supply power and cannot effectively breakdown oxide film.
Product Feature

  (1) Adopt the latest power supply technology, can continuously output high current, and overcome the shortcomings of pulse power supply can only momentary output current, can effectively breakdown switch oxide film, and obtain the accurate test results.
  (2) The data can be stabilized at 0.01μΩ under the serious interference environment, with good data reproducibility, and according to the size of test product automatic switching range, particularly suitable for micro-resistance of less than 200μΩ high-precision test.
  (3) The output values and time of current can selected automatically through available software, without regulator, or potentiometer adjustment, the adjustment of mechanical wear parts will not cause equipment failure.
  (4) The perfect combination of large current and portability, the device weighs just 4.5kg.
  (5) Unique hardware and software design, which can eliminate the effect of test lead resistance and test clamp contact resistance on the test results. There is no impact to change the length of test leads.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 Service condition   Ambient temperature:-10℃~40℃   Relative humidity:≤80%
 Dimensions   Length330mm*Width260mm*Height140mm
 Weight   5Kg(Exclude accessories )
 Measurement Accuracy   The Measurement Accuracy of the instrument is ±(1%×reading+2μΩ)
 Instrument power   The rated power of the instrument <1200w
 Continuous output current time   50A: 10s~600s
  100A: 10s~600s
 Continuous output current time   The Maximum resolution of the instrument is 0.01μΩ
 Measurement range   0μΩ~6000μΩ
 Test current   The test current of the instrument is 50A、 100A.
