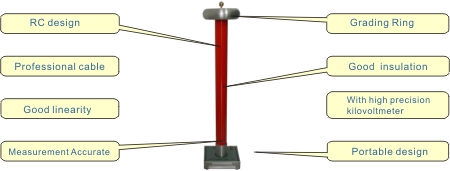

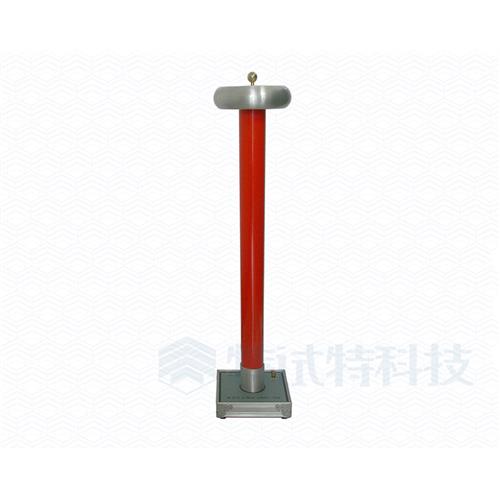

TE-HPM High Voltage Test Set
TE-HPM High Voltage Test Set is applied to power frequency AC and DC high voltage measurement, the unit adopts RC type voltage divider principle, with the advantages of easy to use, intuitive display and high measurement accuracy, which can substitute the electrostatic voltmeter.
Product Feature

  (1) Equal-potential screening, low-voltage digital display, voltage direct-reading.
  (2) High-quality components, high pressure metal film resistors, high voltage polyester capacitor.

Technical Parameters
Model TE-HPM50 TE-HPM100 TE-HPM200 TE-HPM300
Range(KV) AC 50 100 200 300
DC 70 140 280 400
Accuracy AC 1.5% 1.5% 1.5% 1.5%
DC 1.0% 1.0% 1.0% 1.0%
Impedance R(MΩ) 900 1800 3600 5400
C(pF) 100 50 25 17
