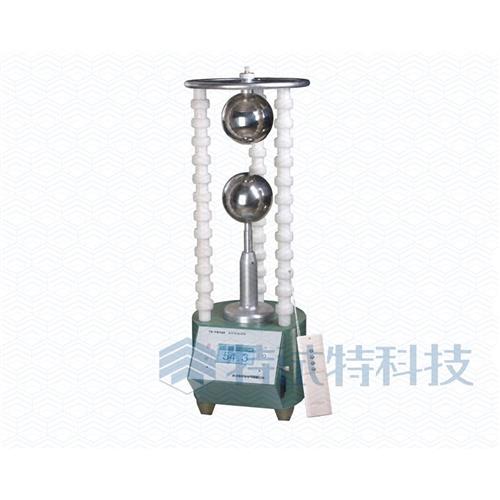

TE Series Remote Control Sphere Gap
TE Series Remote Control Sphere Gap,a popular high voltage protective test equipment in China, widely used in protective test in the AC/DC high voltage tests. With the functions of intelligent, good performance, automatic calibration, strong anti-jamming ability and portable, it is indispensable in high voltage protective measurement.

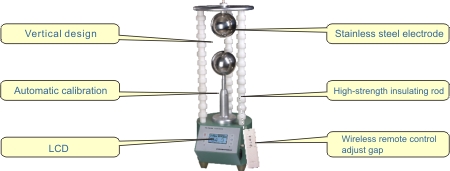

Product Feature

  (1) Sphere Gap is adjusted through wireless remote control, with two modes: accurate adjustment and quick adjustment.
  (2) Set the gap and the actual gap, and Synchronized display by the large screen LCD.
  (3) Built-in gap and the AC/DC discharge voltage contrast table. It will automatically lift &drop the specified location after selected.
  (4) Automatic calibrate Sphere gap distance.

Technical Parameters
 Power Supply   Voltage:AC220V±10%       Frequency:50Hz±1Hz
 service condition   Ambient temperature:-10℃~40℃   Relative humidity≤80%
 Dimensions   TE8510:Height715mm*Ф300mm
  TE8515:Height860mm*Ф400mm
  TE8525:Height1500mm*Ф700mm
 Weight   TE8510:7Kg
  TE8515:9Kg
  TE8525:32Kg
 Resolution   Gap regulation accuracy of the set is0.1mm
 Gap regulation accuracy   Gap regulation accuracy: 0.1mm,1mm
 Gap regulation range   TE8510:5~ 70mm
  TE8515:5~100mm
  TE8525:5~130mm
