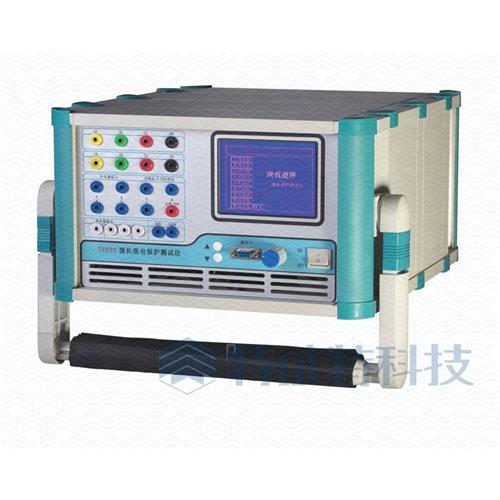

TE5802 Microprocessor-based Protective Relay Tester
The successful development of TE5802 Microprocessor-based Protective Relay Tester has solved the problem of the traditional test apparatus and test methods can not satisfy the needs of the new protection device, can operated stand-alone , also can be connected with the laptop for operation. With powerful features, excellent interface, rotate type mouse operation to replace the traditional complicated keyboard, only one knob to complete all of the data set, function modification or switch.

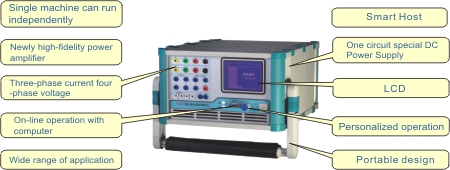

Product Feature

  (1) Applicable to the calibration of a variety of single, three-phase electromagnetic, electronic, microprocessor-based relay device.
  (2) Single machine can complete a variety of calibrations; more complicated work can be completed through connecting to a laptop.
  (3) In addition to four-phase voltage source and three-phase current source, it also has one circuit special adjustable DC power supply output.

Technical Parameters
 Special power supply output   DC80~250Vadjustable
 The Switches Quantity   7 circuits input
 Dimensions   450×340×200mm
 Weight   20kg
 Test function   Dual mode of operation, can operate stand-alone or connect with a computer
 Time test   0~9999.9999s
 Resolution   0.1ms
 Superposition of harmonic   0~9times
 Probe length  line: 920mm probe: 350mm
 Four-phase voltage output   AC 0~120V/phase
  DC 0~±160V/phase
 Three-phase current output   AC 0~40A/phase
  DC 0~±10A/phase
 AC output phase   Range: 0~360°
  Arbitrary angle, accuracy <0.5 °
 AC output frequency   Range:20~300Hz
 Accuracy   <0.01Hz
