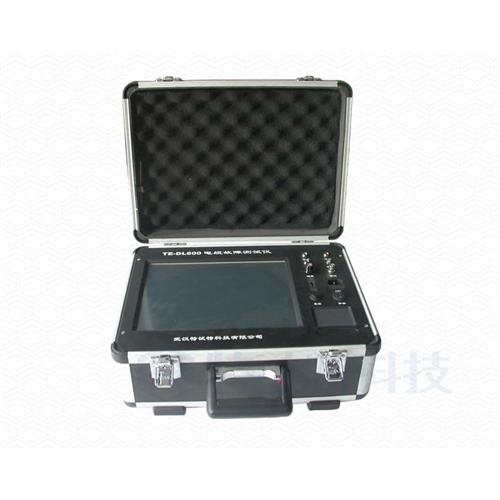

TE7600 Cable Fault Tester
TE7600 Cable Fault Tester, designed from the user’s requirement, considered the field operating conditions, and integrated the fault testing part and routing test part, reduced size, increased the DC power supply and USB communication interfaces, powerful features that make operation more convenient.
Product Feature

  (1) The whole set cable fault tester consists of flash measurement, routing and fixed-point.
  (2) With DC power supply, convenient to test on site, field assay, and mine cable testing.
  (3) The latest of the USB communication interface, can connect with desktop unlimited storage, analysis of waveforms, also can enjoy our online technical services, and manage cable information of the user’ region, including cable distribution, number, starting location, depth and time, cable dielectric, joint position, maintenance records, failure causes, test reports, test records ,etc.
  (4) Current sampler has a new sampling method, so that wiring is simple, intuitive easy to analyze waveform, and fully isolated from high voltage, it is absolute safe for the operator and host machine.


Technical Parameters
 Test distance   ≤15km
 The shortest test distance   15-20m
 Measurement Error   Rough measurement error ±1%
  Fixed-point error±0.2m
 Sampling rate   25MHz
 storage   8Kbyte (Storage area can be divided into two parts)
 Display   320×240LCD display with backlight
 Display resolution   V/50m(V is the Spreading speed m/μs)
 Printing   Built-in micro printer
 Power supply   AC220V±10% or DC power supply
 Demensions   370×180×240mm
