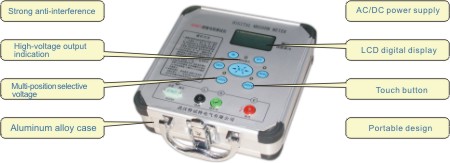

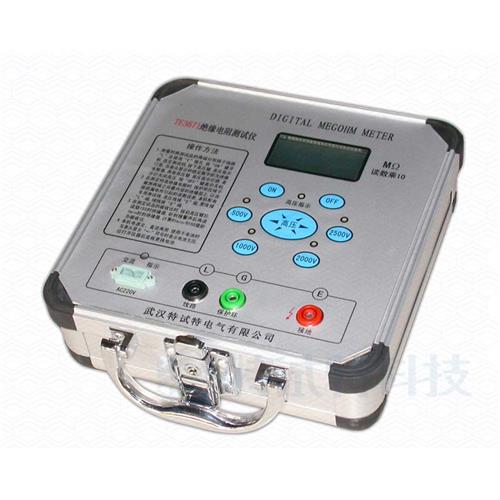

TE8671 Insulation Resistance Meter
Used for measuring the insulation resistance of transformers, motors, cables, reactors, generators and other equipment and components, and real-time indicate absorption ratio, polarization index.
Product Feature

  (1) High output power, strong load capacity& anti-interference ability.
  (2) The instrument needn’t manpower, battery-powered, range can be automatically converted; touch buttons voltage selection and LCD display, making measurement very convenient and rapid.
  (3) Battery-powered, under-voltage indication

Technical Parameters
 service condition   Ambient temperature:0℃ ~ +45℃
  Relative humidity:≤85%RH
  Demension   220mm×200mm×105mm
 weight   <1.4Kg
 Power application Range, power loss   DC: (6 Ni-Cd 5# rechargeable battery) External AC 220V power supply for charging.
  Power loss: Static power loss≤160mW; Maximum power loss≤2.5W
 Output voltage rating, measuring range, resolution, error
Output voltage rating 500V,1000V
2000V,2500V
Measuring range   0~19999MΩ
Relative error   ≤±4%±1d
resolution 0.01MΩ,1MΩ 1.0MΩ,10.0MΩ
 The maximum output voltage Load capacity and short circuit current
 Voltage/Load 2500V/20MΩ
Voltage drop about10%
short circuit current >1.6mA
