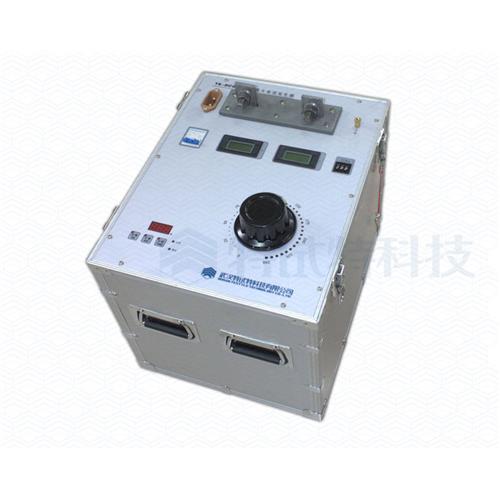

TE-DCG Digital High Current Generator
TE-DCG Digital High Current Generator adopts CNC technology, with the features of strong anti-jamming ability, variable power supply, small size, light weight, operation simple, compact structure and convenient maintenance, widely used in high voltage circuit breaker protection test and high voltage generator test.

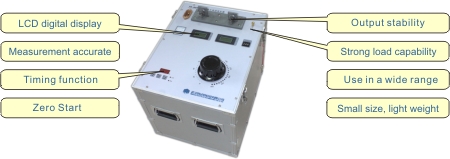

Product Feature

  (1)With the functions of zero start, over current indication, sound and light alarm.
  (2)Built-in AC RMS measurement circuit, with high-precision LCD header, high precision, more intuitive to display.
  (3)Small size, light weight, easy to test on-site.
  (4)Output current stability.

Technical Parameters
Model Capacity(kvA) Input Voltage Input Current Output Voltage Output Current
TE-DCG500 3 200 15 6 500
TE-DCG1000 6 200 30 6 1000
TE-DCG2500 15 380 39.5 6 2500
TE-DCG4000 24 380 63 6 4000
TE-DCG5000 30 380 79 6 5000
TE-DCG6000 36 380 95 6 6000
TE-DCG8000 48 380 126 6 8000
TE-DCG10000 60 380 158 6 10000
